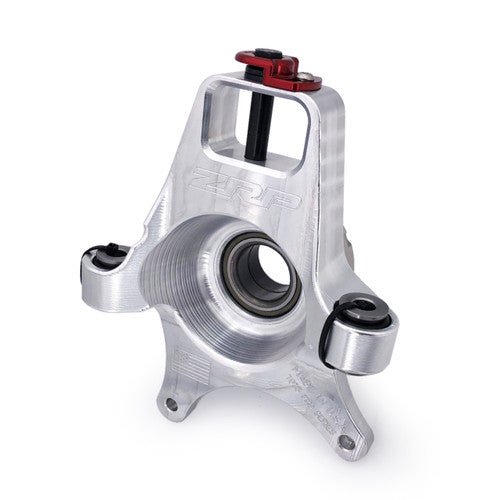

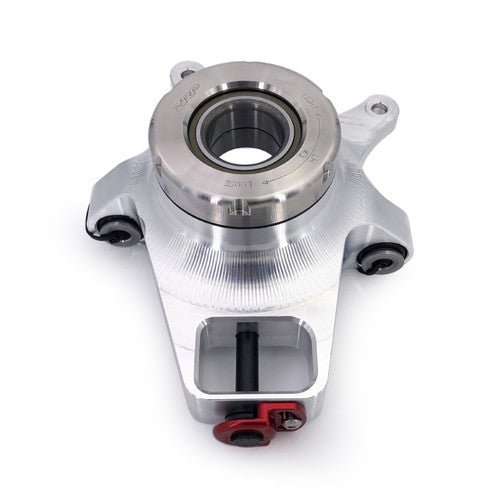

ZRP 7075 Capped Double Shear Rear Knuckle - Can Am X3

ZRP
In stock
Regular price $1,999.00
Regular price Sale price $1,999.00
Sale Sold out
Shipping calculated at checkout.
Description

Can-Am Rear Knuckles

  • Ultimate Strength Added To Middle Radius Rod
  • Teflon Lined Spherical Bearings
  • 72,000 lbs Of Force

Here is a great option for the middle radius rod/rear knuckle problem on the Can-Am X3.

ZRP has built an all billet rear knuckle that puts the middle radius rod in double shear and if that wasn't enough, they added an ARP bolt for ultimate strength. They eliminated stress risers and added cross-section in all the right spots to make this part truly race-proven.

The ZRP 7075 Rear knuckleS come installed with high-end, Teflon-lined, spherical bearings. These will not wear out like the stock pivots.

Additionally, they have addressed the wheel bearing issue. Taking over 72,000lbs of force, the ZRP knuckle is almost 5X as strong as the stock knuckle.

Made from high quality, USA-made, 7075-T6 Aluminum.

Pre-Installed Hardware included per knuckle

  • (1) ARP Bolt

  • (1) ZRP anti-rotation locking cap w/screw

  • (2) FK uniball bearings w/ (2) snaprings

  • (4) ZRP misalignment spacers w/ (2) o-ring

  • Threaded Cap

  • Cap install tool

WHEEL BEARINGS NOT INCLUDED UNLESS SELECTED.

*Note: The middle radius rod bolt anti-rotation block was designed for racing applications. The anti-rotation block will not clear the stock trailing arm. This block is not needed for recreational use. If you wish to use the anti-rotation block trimming of your trailing arm may be required. *

Install Instructions

The ZRP threaded Can-Am knuckle cap must be torqued to 155ft-lbs using the supplied tool.

Anti-seize must be used on the threads at all times. Not loctite!
