AiM MyChron 6 Data Logger w/ Cylinder Head Temperature Sensor

AiM MyChron6 is the best choice for a data logger for use in the RZR 170 and Hisun 250's. the sixth generation of MyChron — with the integration of increasingly advanced technologies, such as high-precision GPS, 6-Axis IMU, Bluetooth connectivity, and the long lasting battery (up to 20 hours) — is transforming the new MyChron6 into a powerful data analysis center, capable of providing increasingly accurate and detailed information from different sources. This unit comes with a Cylinder Head Temp Sensor.

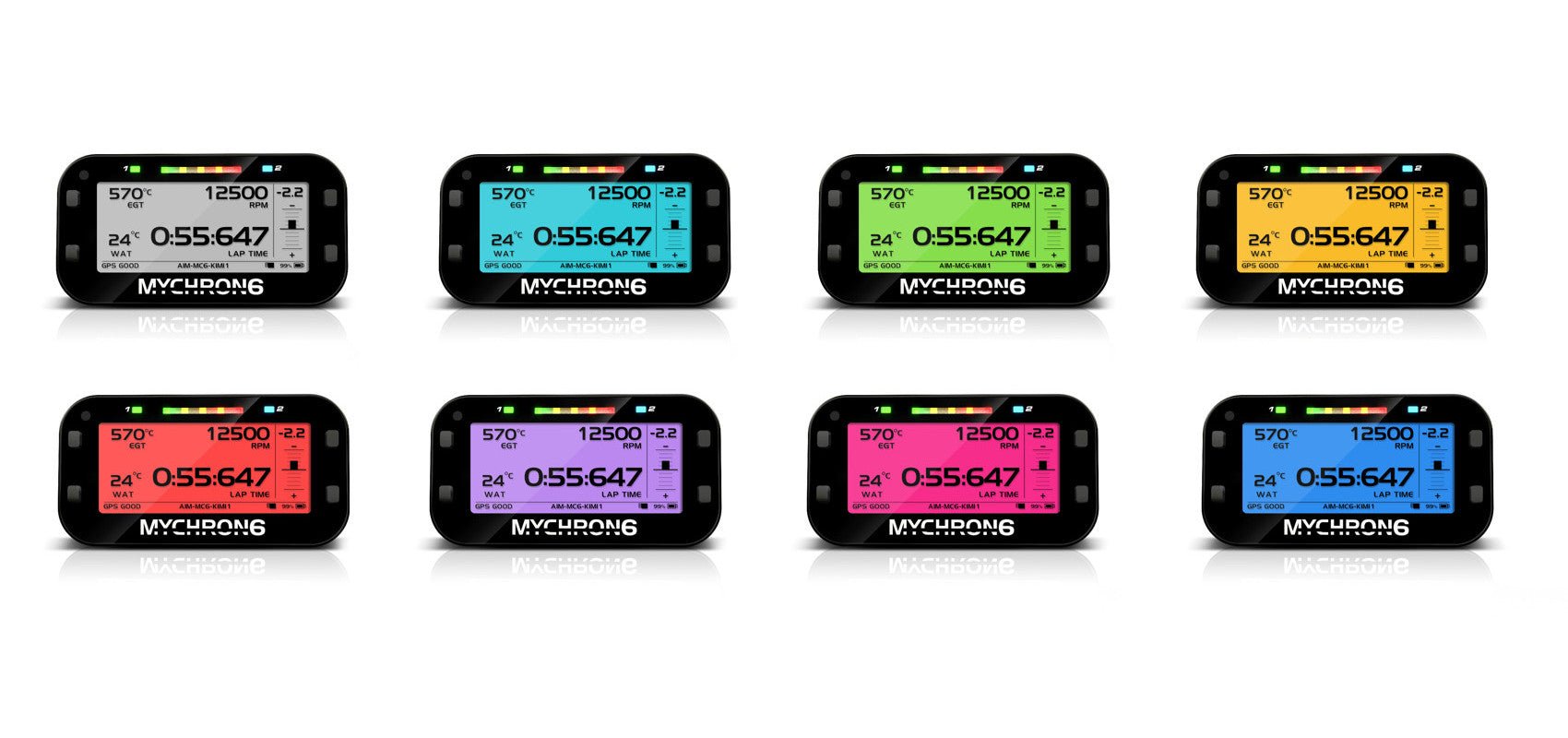

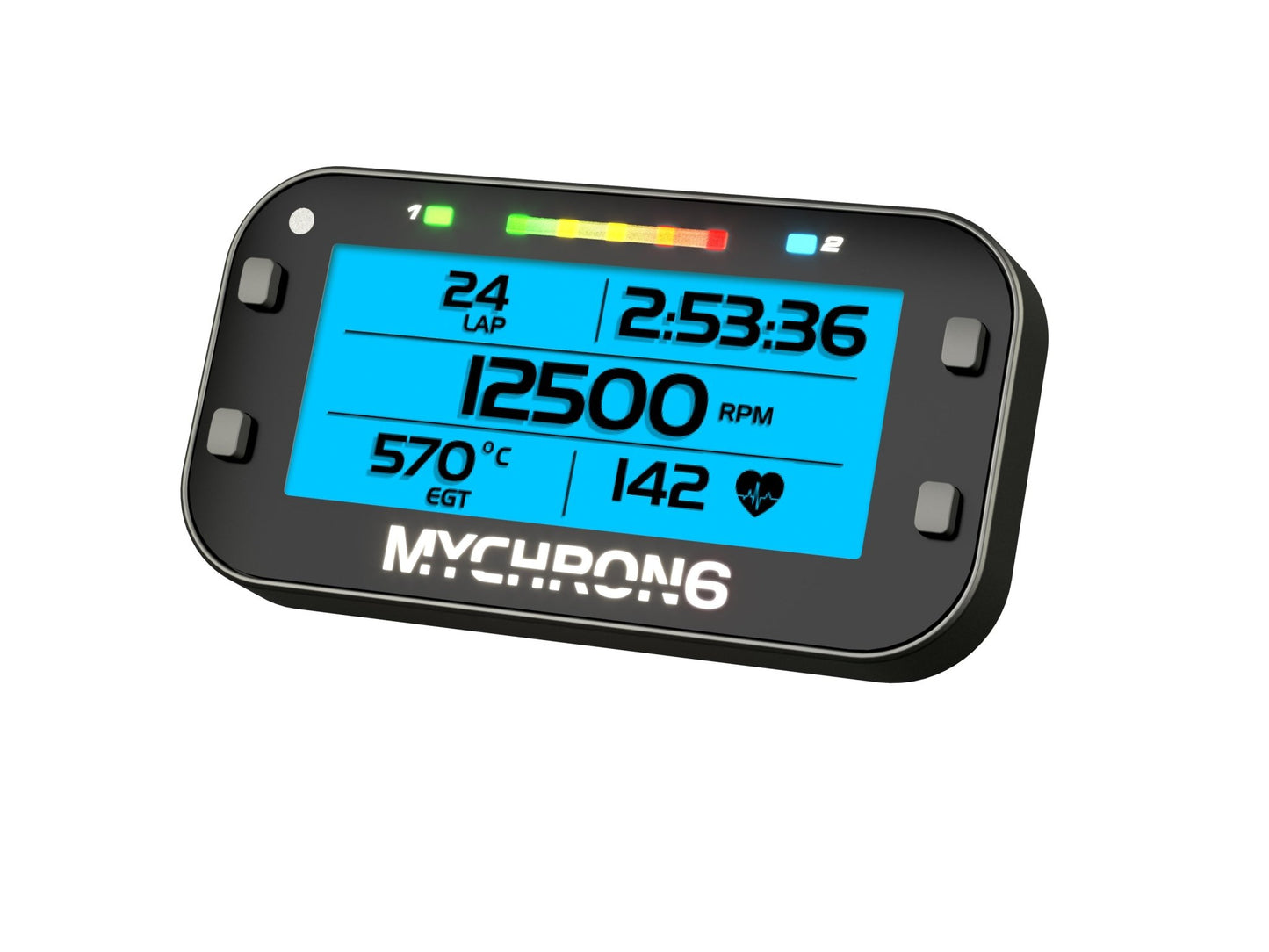

 Lap times, split times, sector times, best lap, RPM, gear number, track map and much more are shown in pre-configured pages: you will be able to choose the page layout you prefer to better monitor your data. The MyChron6 has five individually configurable RGB LEDs. You will choose color and values thresholds for their activation. In addition, they can be configure to show your best lap/split time, monitor RPM level and even indicate the right moment for gear shift.

3D accelerations and gyro. The 6-axis 50 Hz Inertial Measurement Unit (IMU) measures acceleration in the forward-backward,  up-down and right-left directions and the angular velocity in the machine's pitch, roll and yaw directions, then calculates and relays that information in real-time to MyChron6 to control the engine and the behavior of the chassis to assist the rider.

Experience seamless connectivity with the advanced Bluetooth module of MyChron6.
If you wish to measure your heart rate while racing, simply connect via Bluetooth the heart rate monitor to your MyChron6 and look the data on-screen or download them after the race. Compatible with the most common heart rate monitor on the market.

At the end of your session, you can recall the summary of your three best laps: lap time, max/min RPM, speed and temperature.

MyChron6 offers the opportunity to download the data wirelessly, using an easy and safe Wi-Fi connection: no data key or PC connection are needed anymore. Wi-Fi data transfer is easily configurable via PC or keyboard.

Explore the vast range of accessories and add-ons that MyChron6 offers to tailor your kart to your specific needs.

• LCU1S Wide band Lambda controller with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the machine.
• SmartyCam 3 Series - The on-board cameras that overlays on videos the data sampled by your logger.

• The channel multiplier, to check when you brake and accelerate, as well as Power Valve behavior.
• Tire Temperature Sensors Kit - Tire Temperature sensors have been specifically designed to measure the surface temperature of tires, providing important info for chassis tuning, tire exploitation, and driver behavior.
• Data Hub - The CAN connection multiplier working as an interface between MyChron6 and its peripheral equipment's.
• Sensors - Temperature, pressure, brake/throttle, steering wheel, speed, RPM sensors.
